Sunday 28 November 2010

Finishing off



Been one of those good days where I get to finish a few bits off. I've packaged up the matrix mixer and even found 16 matching knobs out of one of my many scrap boxes of parts. I've also made a new reclining upright unit for my ghetto modular boards. It leans back around 25 degrees from vertical and provides a more ergonomic platform that also takes up much less of a footprint. It's again made from fibre board so my modules can be pinned to it.

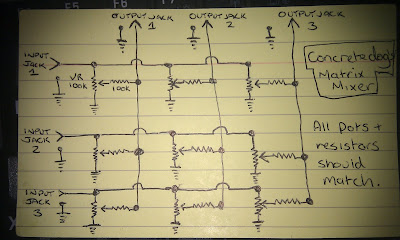

I also posted the schematic for the matrix mixer at TSOL, but thought I'd post it here in case anyone's interested.....typically my schematic is a lofi affair eschewing CAD or other schematic software for a good old index card and pen!

Wednesday 24 November 2010

Matrix Mixer update



Just a quick update as I've managed to finish the wiring on this tonight and have a bit of a play as it is now functional although uncased. The play consisted of a couple of bits from my CMOS synth stuff being patched through the mixer and my homemade spring reverb and a zoom multi effects unit being patch into the mixer as both outputs and inputs, so they can self oscillate/feedback.

Very rough and ready but has shown me the possibilities, here's the rough jam.

MATRIX01 by concretedog

Sunday 21 November 2010

Matrix Mixer WIP





Just a quick post to show my current WIP project. It's a 4 x 4 passive matrix mixer. A matrix mixer is a mixer that allows you to create 4 different mixes from the same 4 inputs to 4 separate channel outputs. The beauty of this is when you begin to send outputs back to inputs. I'll hopefully find time to finish this this week and post some audio.

Sunday 7 November 2010

Warm Data at The Absurd



So last night saw me and my Warm Data colleagues headed over to Theatre Clwyd to take part in the absurd festival. It was a great night and we were made really welcome and all of the Warm Data sets got a really positive reaction. Above is the photo of my setup (apols for the low quality phone cam shot). The miracle of yesterday was despite a long journey which involved some madman running into the back of my car at a junction my big board of modules and wires made it without one wire disconnecting...amazing.

In a break from tradition, here's one with my ugly mug in it, mid set, taken by Lungwah himself.



This was a pretty landmark gig for me as my setup was entirely handmade the only exception being my trusty old mixer. It felt good to have made everything I played.

Nice one and massive respect to Andy and Sophie for working sooo hard to get this festival together....can't wait for the next one :) If you can you should try and support their events, keep an eye out via the absurd

And finally a massive thank you if you are one of the people who came and asked about my set/rig etc, when people are enthusiastic and interested like that it makes the hours slaving over a soldering iron really really worthwhile.
